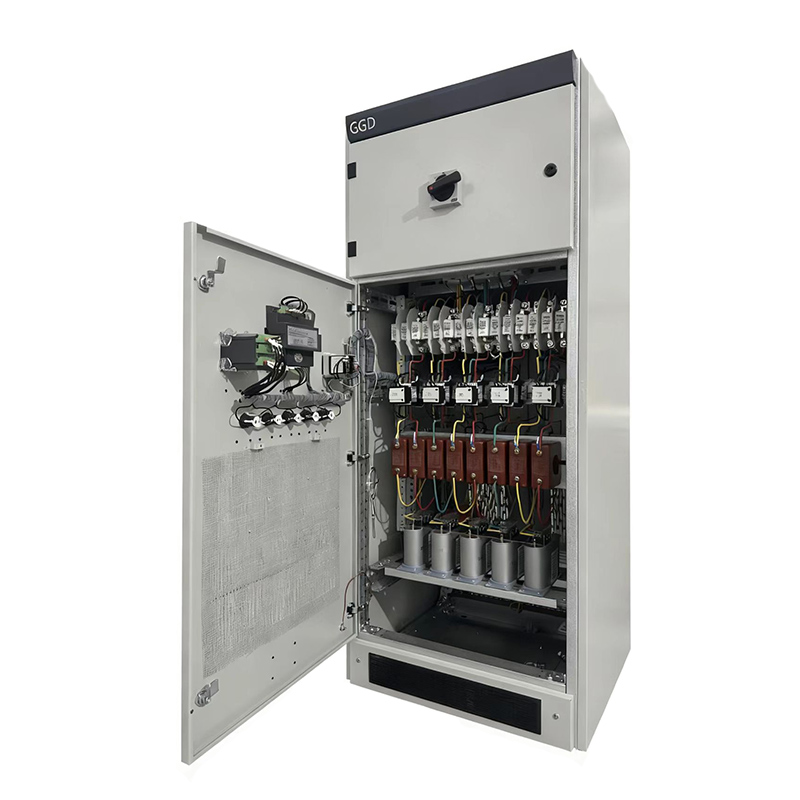

The Low Voltage Capacitor Bank is designed to improve the power factor of low-voltage distribution networks, reduce reactive power losses, stabilize voltage, and enhance overall energy efficiency. It integrates automatic power factor control, switching modules, protection devices, and high-quality capacitors in a compact, safe, and easy-to-maintain structure. This system is widely used in commercial, industrial, and utility distribution applications requiring stable reactive power compensation.

• High Power Factor Improvement

• Intelligent Control System

• Modular Design

• Strong Protection Functions

• High-Quality Capacitors

• Efficient Heat Dissipation

• Durable Cabinet Structure

• Rated Voltage: AC 208V/220V/AC 380V / 400V / 415V / 440V / 480V (other voltages customizable)

• Rated Reactive Power: 10 kvar – 400 kvar (customizable)

• Control Mode: Automatic / Manual switching

• Compensation Type: Step-type capacitor modules

• Power Factor Target: 0.90 – 0.99 (adjustable)

• Protection Level: IP30 / IP31 / IP40 (optional)

• Insulation Voltage: 690V

• Switching Device: Contactors or thyristor switching (optional)

• Cooling Method: Natural ventilation + Forced air cooling

• Controller Display: Voltage, Current, Power Factor, Frequency, Step Status

• Operating Temperature: –10°C ~ +45°C

• Standards: IEC 60831, IEC 61439, GB/T 15576 or equivalents

Our model naming rule:

SXCB–50KVAR

Where:

SXCB = SST Power’s Capacitor Bank

50KVAR = Rated Reactive Power

• Industrial plants and factories

• Commercial buildings

• Hospitals and public infrastructure

• Water treatment plants

• HVAC systems

• Motor-intensive loads

• Distribution networks needing reactive power compensation
