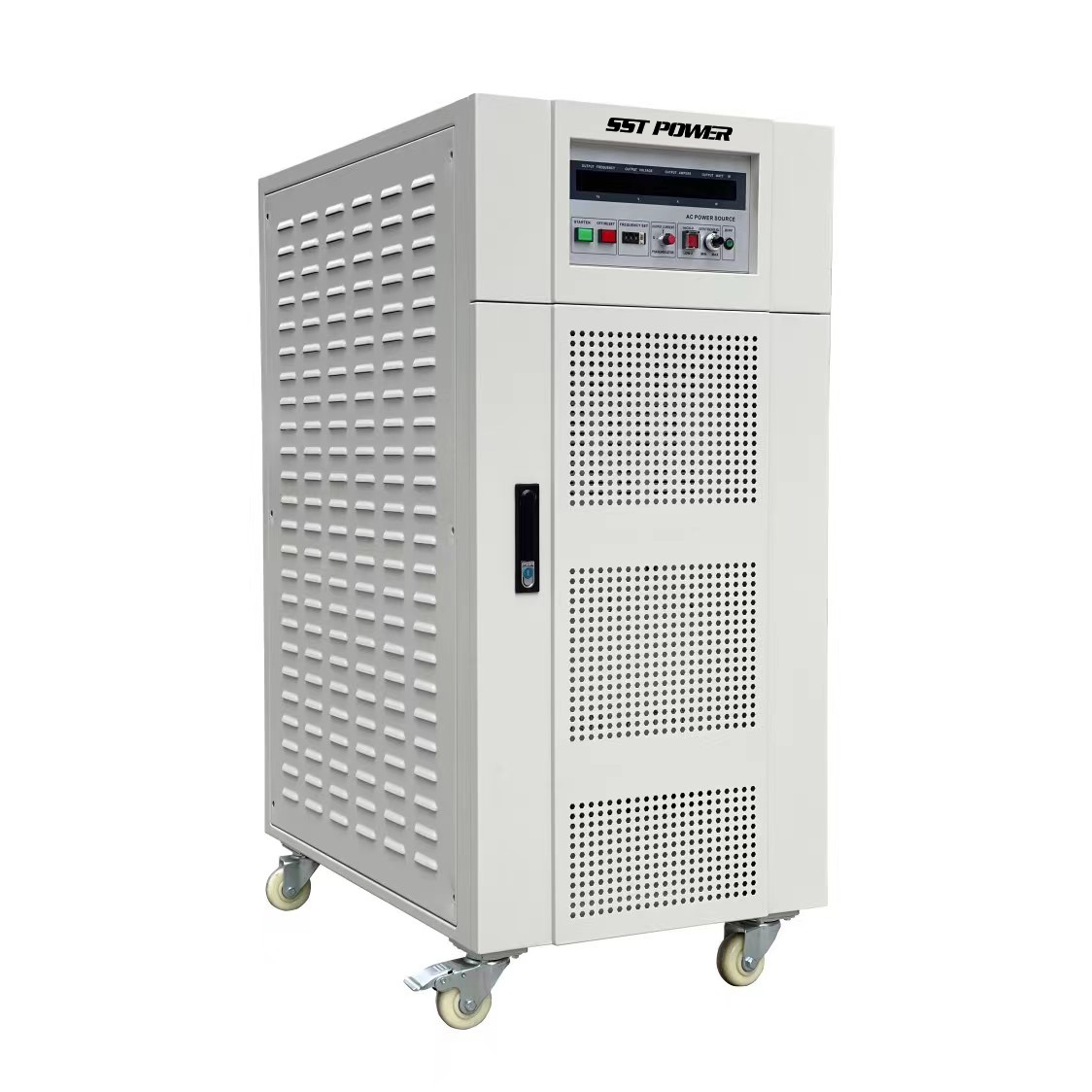

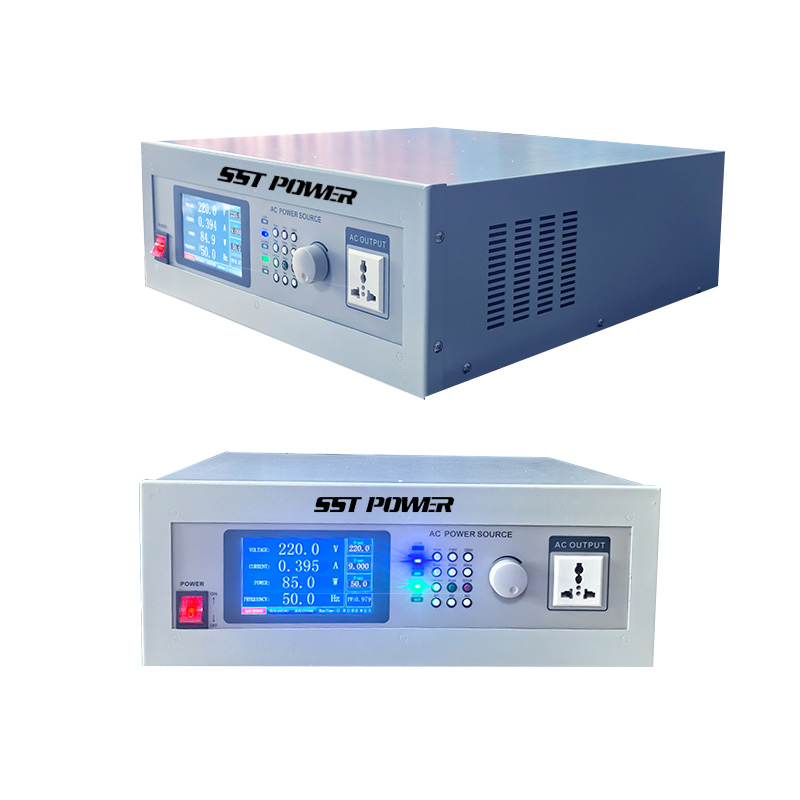

Variable Voltage & Frequency Converter also call AC power source. It is a high-performanced, fast and steady speeded frequency converter. It is a compact and cost effective units that offer excellent performance and ease of use. Using IGBT/SPWM switching mode technology for efficient operation and high precision, these units come in power levels from 500VA to 1000kVA.
·Simple but practical. Easy to operate.
·Low Voltage Distortion.
·Safty Protections.
·Wide optional output voltage can be choosed.
·Applying IGBT/PWM technology.
·Both RS232 and RS485 are Optional.
·Customization is available. Output voltage 0-1000V adjustable, output frequency 5-1000HZ adjustable
·can be connected to PLC
·Suitable for resistive, capacitive, inductive and other mixed loads.
·Each phase can be loaded independently.
AC power source are generally designed for testing industrial equipment, aircraft equipment, household application and so on, applying in technical area. The frequency can also be adjusted to 400 Hertz for applications such as the testing of military/avionics equipment or for the operation of 400 Hz electronics that are onboard an aircraft or a military vessel.
