Pole/Wall-Mounted Outdoor UPS 1K 600VA/360W
Description
Pole/Wall-Mounted Outdoor UPS is an outdoor power project solution specially designed for municipal transportation, security systems, and communications industries.
Features:
The drawer-type control unit is easier to install and maintain.
Boost and buck AVR for voltage stabilization.
Auto restart while AC is recovering.
Excellent microprocessor control optimizes reliability.
Lightning protection.
Built-in Network Monitor Card for remote monitoring.
Built-in super smart charger, shorten charging time.

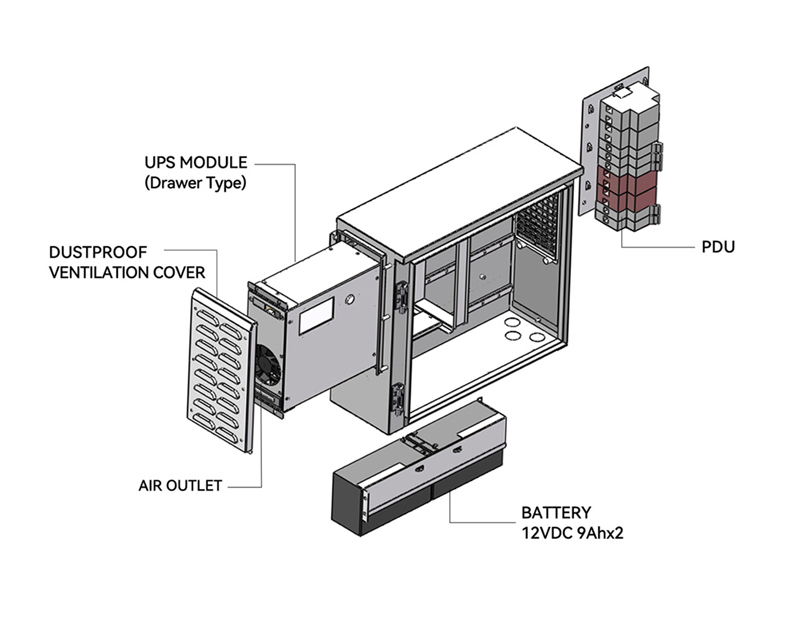

Product Structure Diagram
Pole/Wall-Mounted Outdoor UPS 1K 600VA/360W
Description
Pole/Wall-Mounted Outdoor UPS is an outdoor power project solution specially designed for municipal transportation, security systems, and communications industries.
Features:
The drawer-type control unit is easier to install and maintain.
Boost and buck AVR for voltage stabilization.
Auto restart while AC is recovering.
Excellent microprocessor control optimizes reliability.
Lightning protection.
Built-in Network Monitor Card for remote monitoring.
Built-in super smart charger, shorten charging time.
Product Structure Diagram
Technical Parameters
Model | ADS-600-IP55 | ADS-1000-IP55 |
| Capacity | 600VA/360W | 1000VA/600W |
| Input |
| Voltage | 220 VAC |
| Voltage Range | 140-300 VAC |
| Frequency | 50/60Hz |
| Output |
| Voltage Regulation | 230 VAC(+-10%) |
| Frequency | 50/60Hz |
| Transfer Time | Typical 2-6ms,10ms max. |
| Waveform | Simulated sine wave |
| Battery |
| Type &Number | 12V/9AHx2 |
| Charging Time | 6 hours recover to 90%capacity |
| Physical |
| Dimension(WxDxH mm) | 380*359*163 |
| Net Weight(KGS) | 16.5kg |
| Material | Cold rolled steel plate with outdoor spray powder |
| Installation | Pole-Mount |
| Protection Level | IP55 |
| Display |
| Display | LED display | LED dispaly |
| Communications |
| Communication Interface | SNMP Card |
| Work Environment |
| Humidity | 0-95%RH (non-condensing) |
| Temperature | 0-50℃ |
| Altitude | Less than 1500 M |
Technical Parameters
Model | ADS-600-IP55 | ADS-1000-IP55 |
| Capacity | 600VA/360W | 1000VA/600W |
| Input |
| Voltage | 220 VAC |
| Voltage Range | 140-300 VAC |
| Frequency | 50/60Hz |
| Output |
| Voltage Regulation | 230 VAC(+-10%) |
| Frequency | 50/60Hz |
| Transfer Time | Typical 2-6ms,10ms max. |
| Waveform | Simulated sine wave |
| Battery |
| Type &Number | 12V/9AHx2 |
| Charging Time | 6 hours recover to 90%capacity |
| Physical |
| Dimension(WxDxH mm) | 380*359*163 |
| Net Weight(KGS) | 16.5kg |
| Material | Cold rolled steel plate with outdoor spray powder |
| Installation | Pole-Mount |
| Protection Level | IP55 |
| Display |
| Display | LED display | LED dispaly |
| Communications |
| Communication Interface | SNMP Card |
| Work Environment |
| Humidity | 0-95%RH (non-condensing) |
| Temperature | 0-50℃ |
| Altitude | Less than 1500 M |
