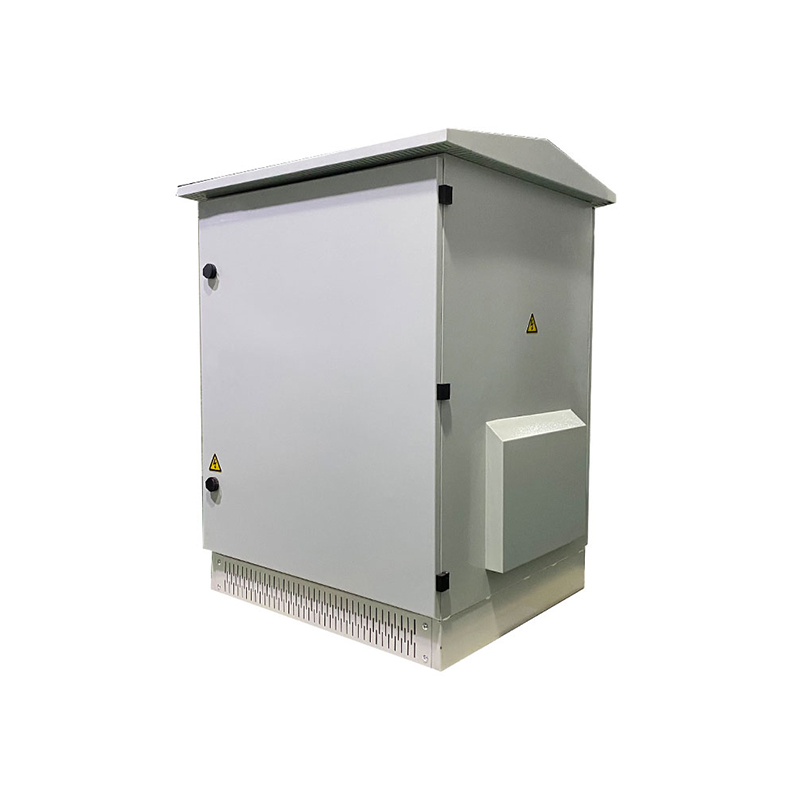

1.Product Introduction
Outdoor voltage stabilizer, also known as three-proof voltage stabilizer, is used to be exposed to nature and has the characteristics of rainproof, dustproof, explosion-proof, and anti-corrosion. This machine adopts microcomputer thyristor integrated circuit to control the voltage stabilization range up to +60%, the efficiency is as high as 99%, and the voltage stabilization precision is higher than 0.5% to 1%
2. Working Environment
Ambient temperature: -15°C~+40°C
Relative humidity; ≤90%
Altitude: ≤1000m
No vibration or bumps in the installation site
There is no gas, steam, chemically deposited dust, dirt and other explosive and corrosive media that seriously affect the voltage and insulation.

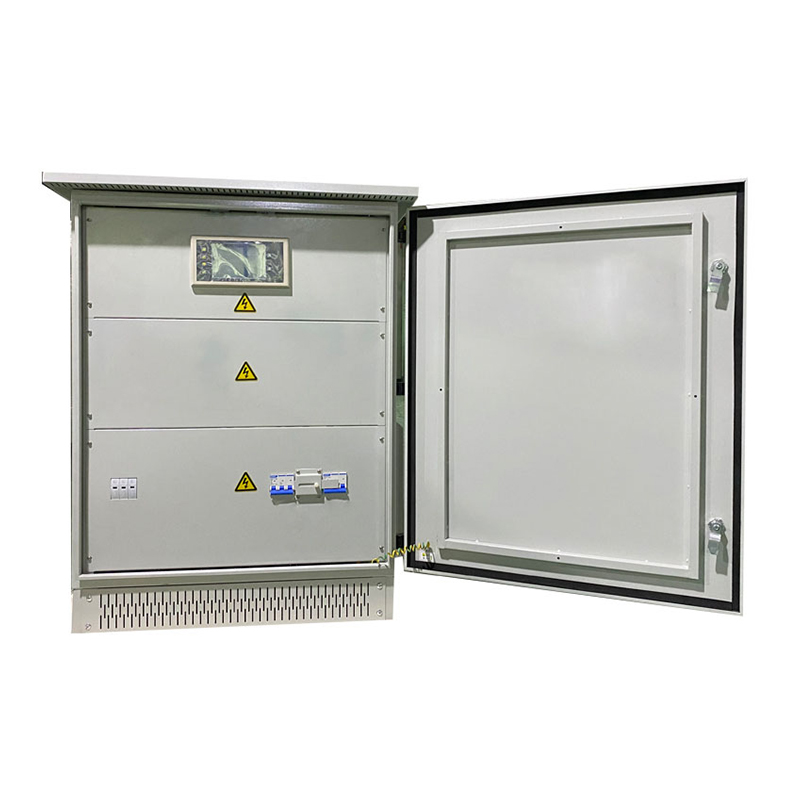

·Large-screen LCD display
Using large LCD screen, can dynamically display the working voltage, working current, and various working conditions.
·Fast Response
Response time within 40 millisecond.
·Wide Input Voltage Swing Ranges
Input Range can be customized from - ±15% to ±60%
·High Precision for the Output Voltage
Output Voltage Accuracy could be ±1% (±1% to ±5% adjustable)
·Multi-protection Design
Highly reliable and endurable design. With the protection of over-voltage, under-voltage ,over-load, short-circuit, automatic bypass.
·Independent Phase Control
Three - phase input and output are adjusted separately to achieve balance so that the equipment can operate normally. This type voltage stabilizer has higher accuracy and more stable operation.

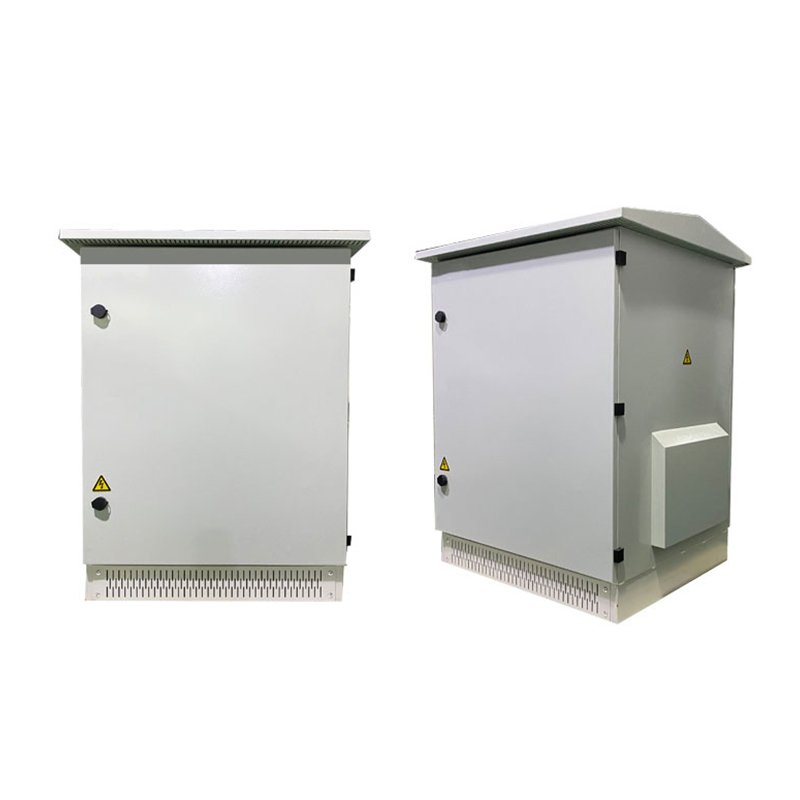

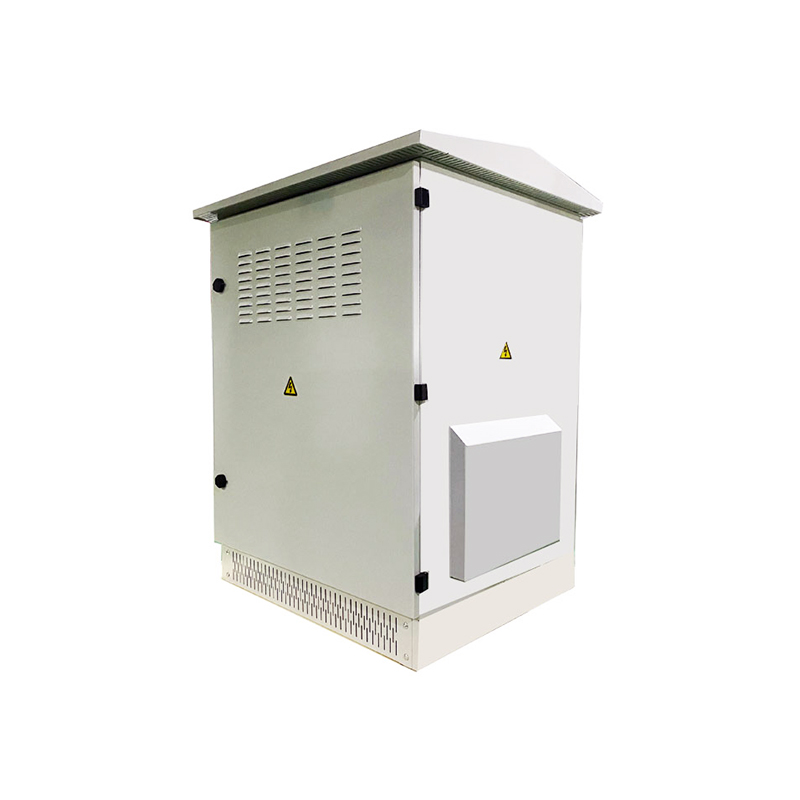

·Rain Proof Enclosure, Corrosion Resistant
Adopt rainproof design, can effectively prevent rainwater splashing. The product adopts the whole high temperature spray paint treatment, the anti-corrosion is high.

No | Model | Size (W*D*H mm) | Gross Weight(KG) |
1 | ZWOD-S10KVA | 480×880×930 | 95 |
2 | ZWOD-S20KVA | 109 |
3 | ZWOD-S30KVA | 126 |
5 | ZWOD-S50KVA | 167 |
6 | ZWOD-S60KVA | 181 |
7 | ZWOD-S80KVA | 530×880×1270 | 196 |
8 | ZWOD-S100KVA | 254 |
9 | ZWOD-S120KVA | 620×950×1320 | 270 |
10 | ZWOD-S150KVA | 311 |
11 | ZWOD-S200KVA | 430 |
12 | ZWOD-S250KVA | 950 |
13 | ZWOD-S300KVA | 1100×800×1600 | 730 |
14 | ZWOD-S400KVA | 870 |
15 | ZWOD-S500KVA | 1300×900×1700 | 950 |
16 | ZWOD-S600KVA | 1300 |
17 | ZWOD-S800KVA | 1600×1100×2050 | 1800 |
18 | ZWOD-S1000KVA | 2500 |
19 | ZWOD-S1200KVA | 1600×1400×2050 | 3300 |
20 | ZWOD-S1600KVA | 2100×1600×2050 | 4000 |
21 | ZWOD-S2000KVA | 4500 |
22 | ZWOD-S2500KVA | 1600×1100×2100*3 cabinet | 5000 |
23 | ZWOD-S3000KVA | 5500 |
24 | ZWOD-S3500KVA | 6000 |
25 | ZWOD-S4000KVA | 7000 |
1. The above Sizes and Weights are estimated for your information. |
2. Customized products maybe with different sizes and weights. |
3. Product specifications are subject to change without further notice. |
This product is widely used for national defense, mechanical processing equipment, transportation, communications, scientific research, industry, transportation, railways, large electromechanical equipment, metal processing equipment, CNC machine tools, printing machines, laser cutting machines, production lines, construction engineering equipment, elevators, medical equipment, Embroidery textile equipment, air-conditioning, radio and television, household appliances, lighting, new energy and other power-consuming occasions that need to be stabilized.
