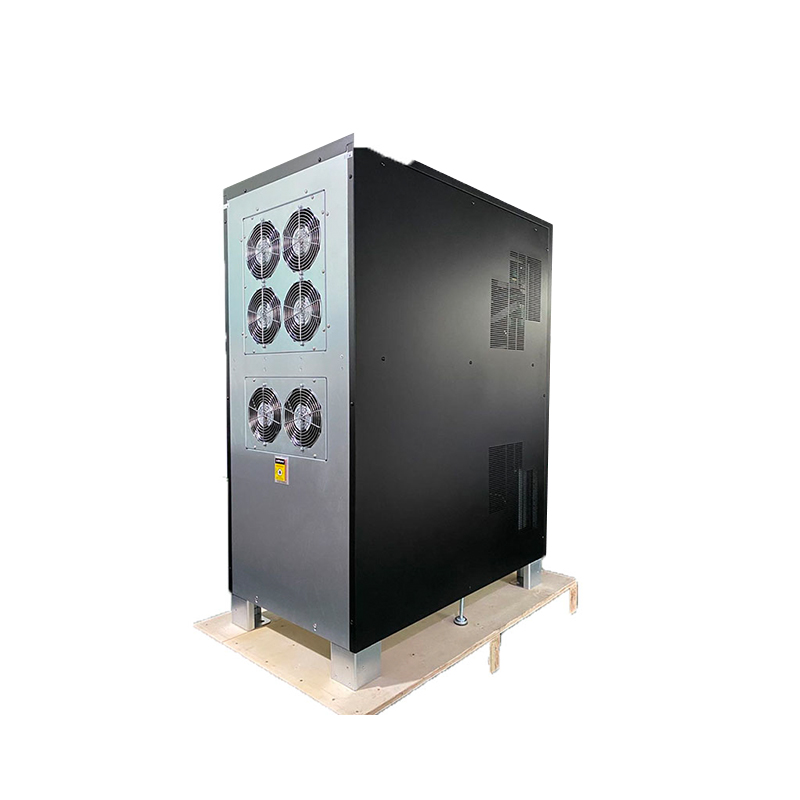

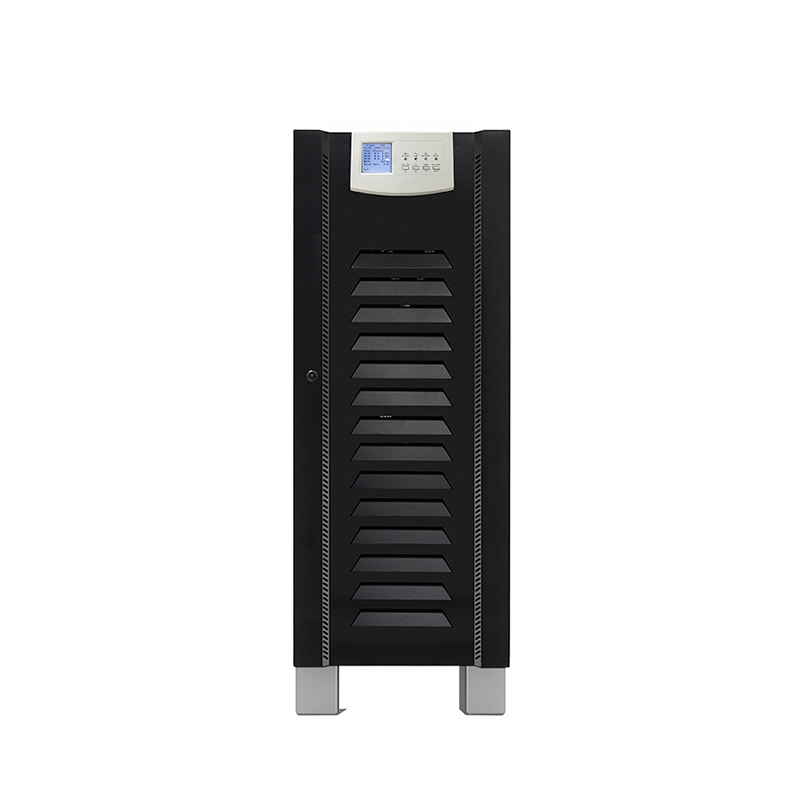

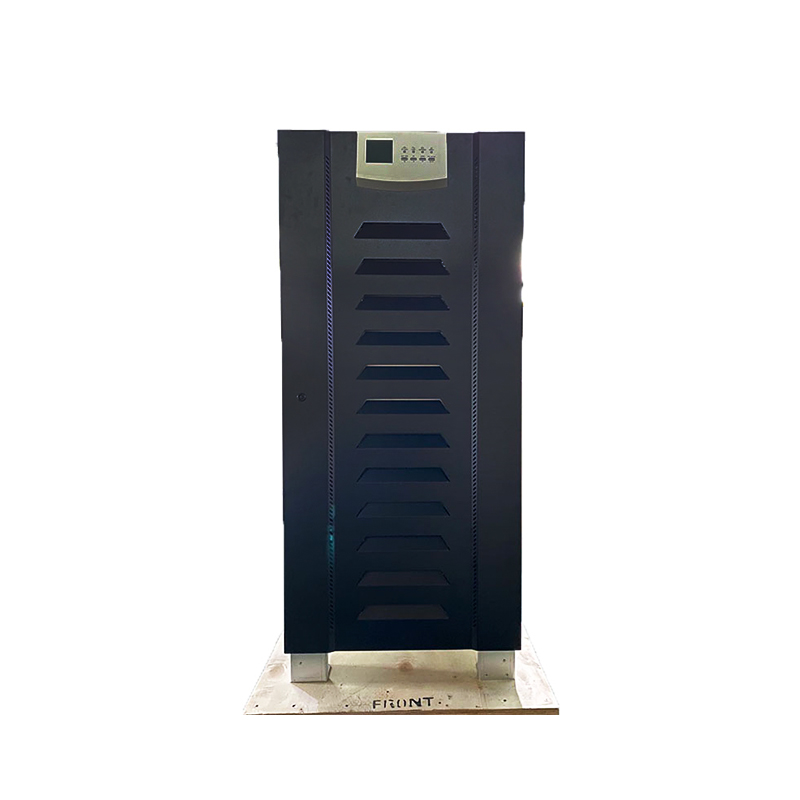

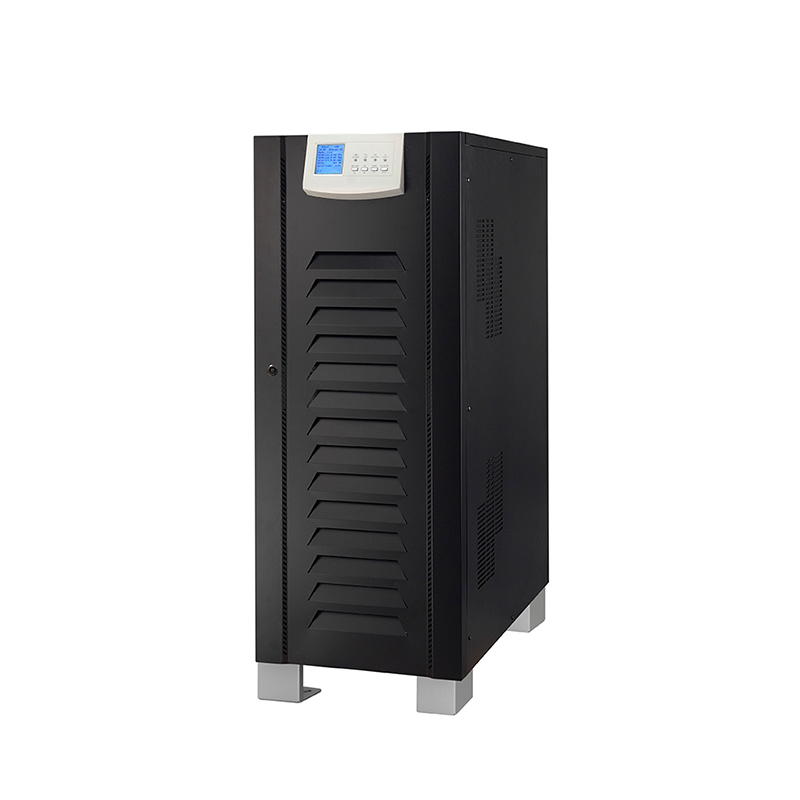

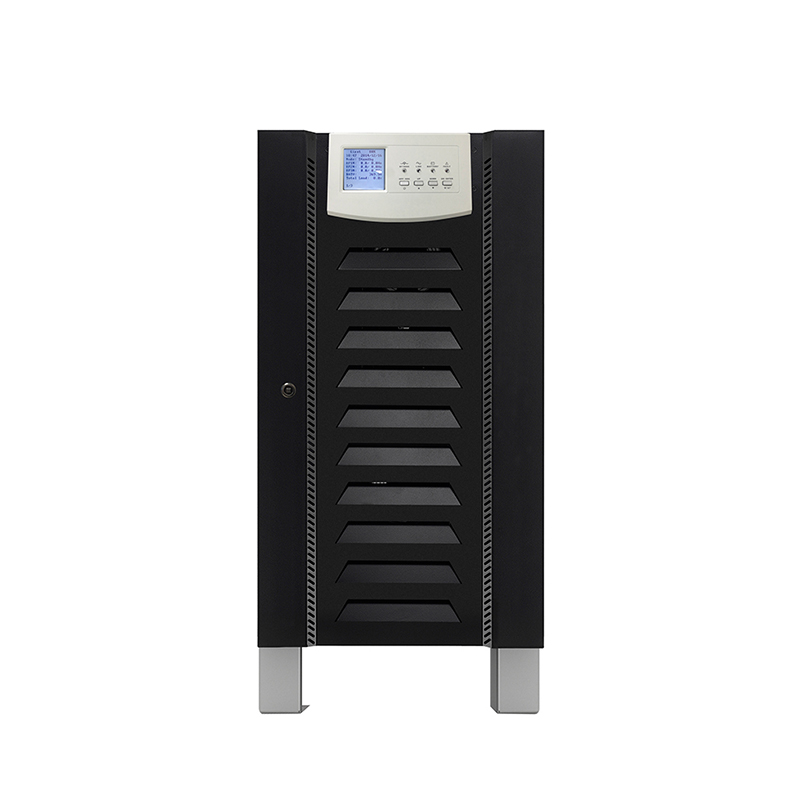

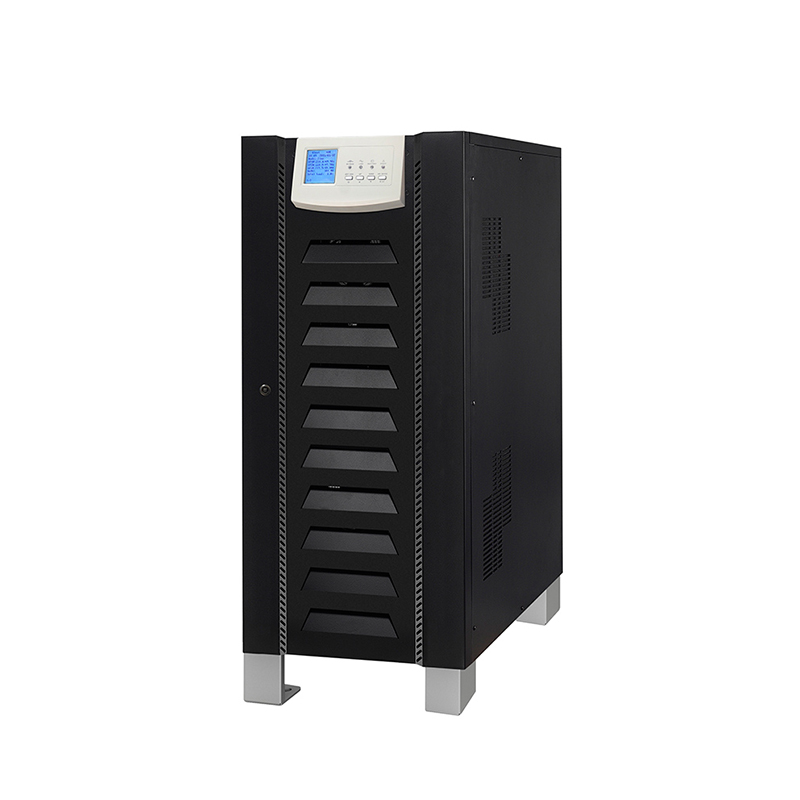

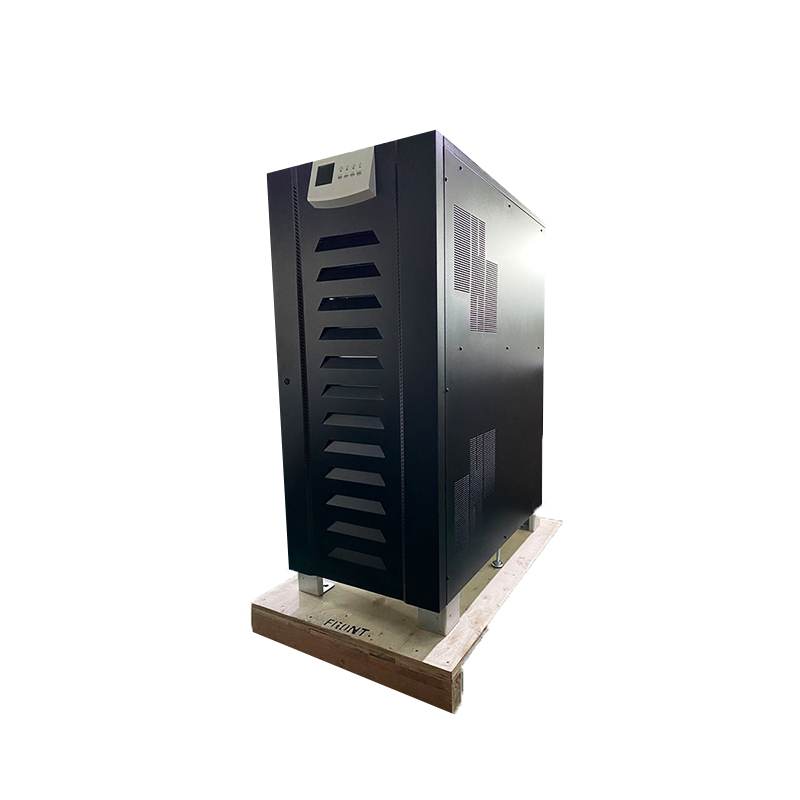

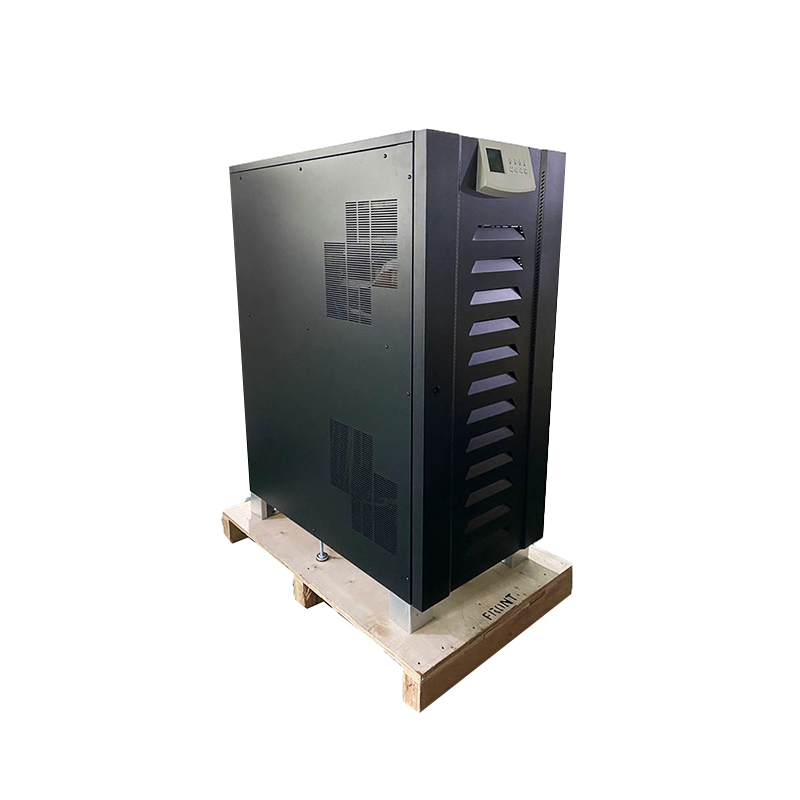

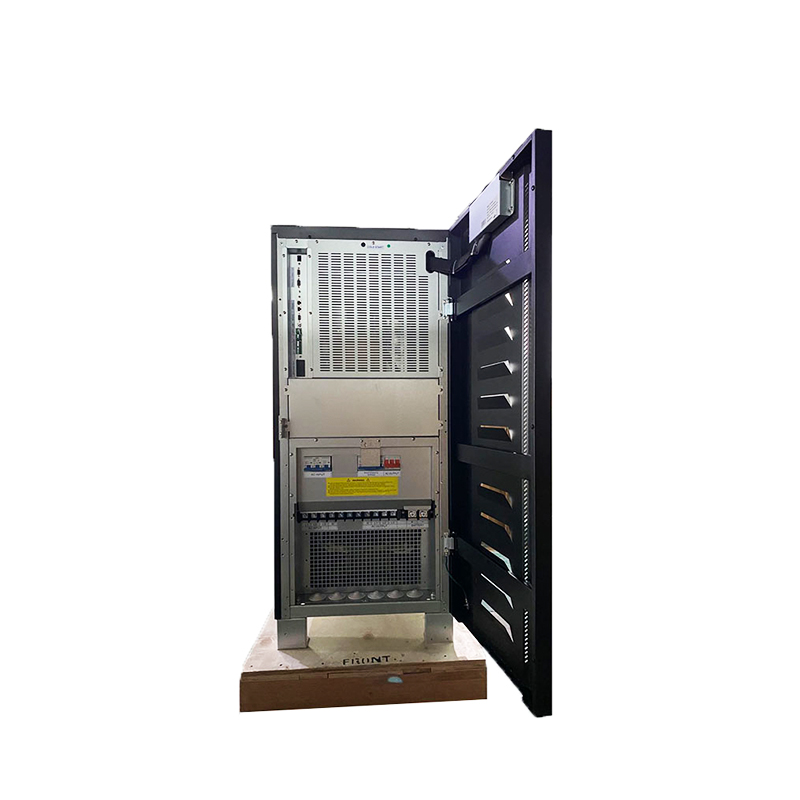

RLF Series is a full digitized DSP controlled online double conversion 3 Phase Industrial UPS. Embedded with isolation transformer, our low frequency online UPS will eliminate common mode noise and the requirments to install expensive dedicated circuits. It provides reliable galvanically isolated power to critical equipment.
•Digital control to achieve online double conversion
•Built-in output isolation transformer
•Industrial design for a variety of harsh conditions
•Front maintenance design
•Adapt to all kind of load.
•Can be up to 4 parallel operation
•Rich communication interface
•Friendly and Intuitive User Interface. Large Color Touch LCD Screen with multi-functional buttons. Safe and Reliable
•90% of system components are from international famous brands. All devices will be aged and tested for more than 24 hours

No | Model | Power Rating | Description | Product Size (mm) | Gross Weight (KG) |
1 | RLF33-10K | 8KW | Input Voltage: 3P4W 285V~475VAC Output Voltage: 3P4W 380V±1% DC VOltage:384VDC Battery:29/30/31/32pcs adjustable | 656×405×817 | 135 |
2 | RLF33-15K | 12KW | 137 |
3 | RLF33-20K | 16KW | 150 |
4 | RLF33-30K | 24KW | 656×405×941 | 211 |
5 | RLF33-40K | 32KW | 821×432×1159 | 276 |
6 | RLF33-60K | 48KW | 317 |
7 | RLF33-80K | 64KW | 975×554×1286 | 429 |
8 | RLF33-100K | 80KW | 577 |
9 | RLF33-120K | 96KW | 975×554×1326 | 650 |
10 | RLF33-160K | 128KW | 1051×705×1376 | 785 |
11 | RLF33-200K | 160KW | 840 |
1. The above Sizes and Weights are our standard type for your information. |
2. Customized products maybe with different sizes and weights. |
3. Product specifications are subject to change without further notice. |
This product is widely used formany different applications and compatible Loads, such as Data Center, Telecom, Network management center, financial center Security Trading Settlement Center, Banking. Large Theater, Stadium, traffic Administration Bureau, Road and Railroad Tunnel Lightning Control and Monitoring Center, Port Information Center. Semiconductor production line, automatic production line, mechanical processing equipment, transportation, scientific research, industry, transportation, railways, elevators, medical equipment, air-conditioning, radio and television, lighting, new energy etc.
