1.Production Introduction

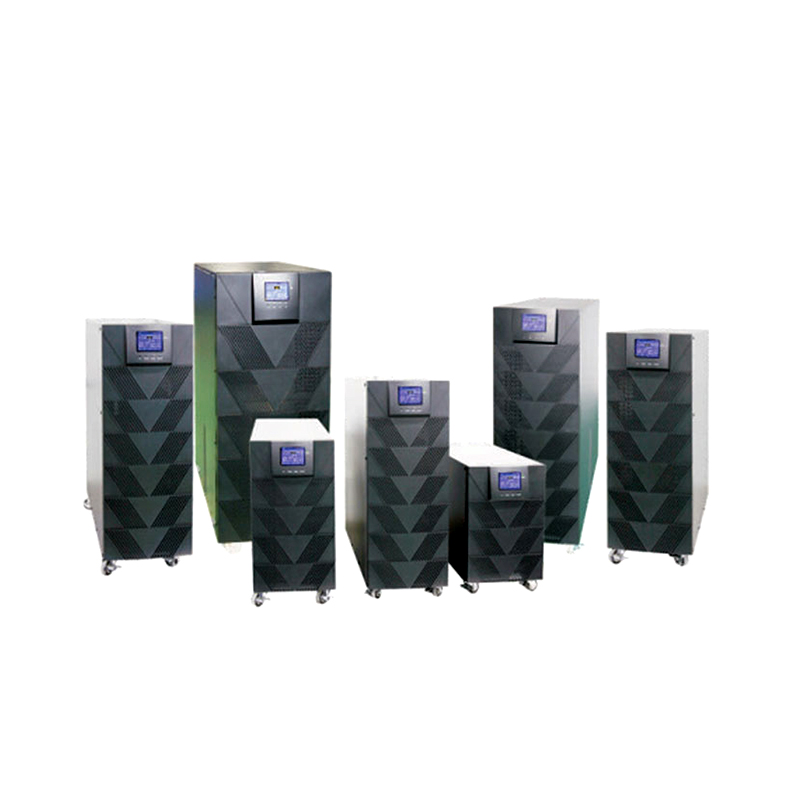

JLF-11 and RLF-31 series 1kVA to 30kVA is a full-digitized with European MCU controlled single phase input/single phase output or 3 phase input/single phase output online UPS. It provides reliable, stable, and constant AC power for computer equipment, telecommunication devices, precision equipment instrument, and network termination equipment (NTE). UPS systems protects all these devices from losing data or information due to power outage, interruption or disruption to truly and comprehensively solve power issues, such as power outage, power surge, voltage sags, temporary over-voltage, temporary under voltage, frequency offset,power disturbances, switching transients, and harmonic wave distortion.

2.Technology Points

MCU control provides higher system reliability than traditional UPS systems.；

Wide Input Voltage and Frequency Range.；

Non-Master Slave digital parallel redundancy feature；

Advanced Battery Management system；

High Overload Ability；

Dot Matrix Color Screen for friendly and intuitive display；

Online Double Conversion technology with output isolated transformer

Smart Size compared to the same size of the UPS in the market. All UPS equipped with wheels.

Screen Details

·Advanced SCR Rectifier and IGBT Inverter Technology. Online 1/1 or 3/1 double conversion structure.

·Adapt with output isolated transformer technology to fit 200、220、230、240Vac，50/60Hz Grid Systems；

·Wide Input Range from Single Phase 160-280Vac、3 Phase 286-475Vac ，50/60 Hz±5%，High •Adaptive Capacity to Mains Grid

·High Overload Ability -- surge current protection technology to carry sudden impact for 0% to 100% load immediately without transfer to bypass；

·Overall Efficiency 85%. 98% under ECO Mode；

·Full-Digitized Non-master slave parallel redundancy technology. Parallel circumfluence ≤5%；

·Intelligent Charging Design. It equips with BAT low/over charged sensor to protect the charger. •Real-time diagnosis on Battery status and response data simultaneously；

·Large Color Dot-matrix LCD+LED Screen with multi-functional keyboard to check system

·parameters, such as fault histories, operational statuses self-diagnosis periodically discharge settings, etc.

·Battery Self-testing can be done on the LCD directly. Battery Capacity, UPS working mode (Online or ECO) can be set on the screen. All history faults and statistics can be seen on the screen to help user analyze the working summary of the UPS.

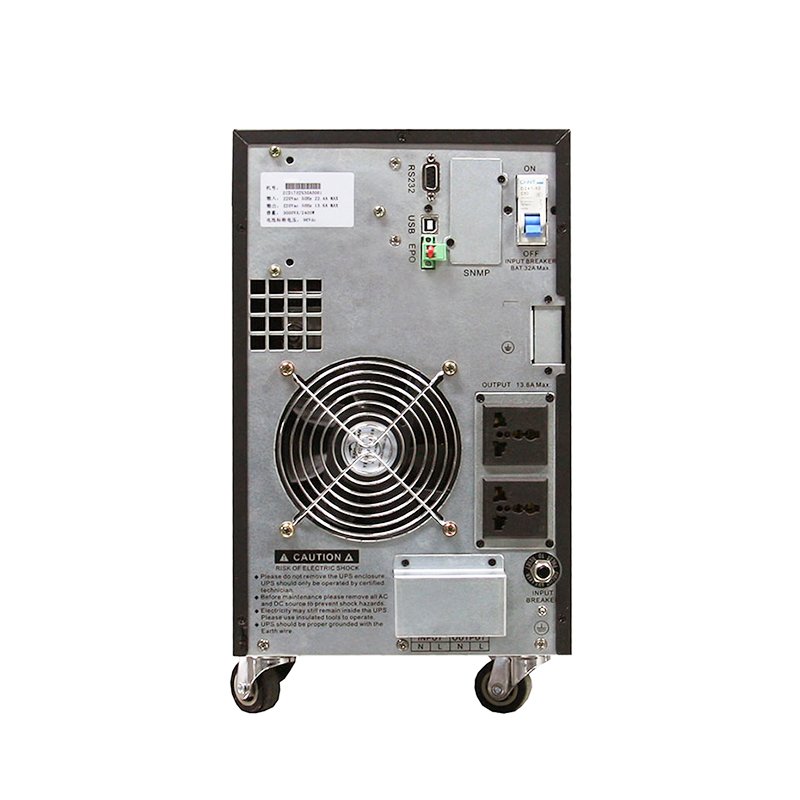

·Monitoring can be done by WAN/LAN SNMP adapter or Cloud Monitoring Adapter. UPS equips with RS232, USB, EPO ports, and can choose RS485 and Dry-contact as optional accessories.

·Front to Rear Ventilation Design to reduce the defective rate of the product.

·Smart Size.

This product is widely used for Bank/Securities clearing center, Cash register, ATM, Automatic shutter door, PC terminal user, Communication equipment such as fax machine, telephone and SPC Switch, Office automation system, Commercial infrastructure，mechanical processing equipment, transportation, scientific research, industry, transportation, railways, elevators, medical equipment, air-conditioning, radio and television, household appliances, lighting, new energy, etc.
